Reliable connection for pneumatic systems

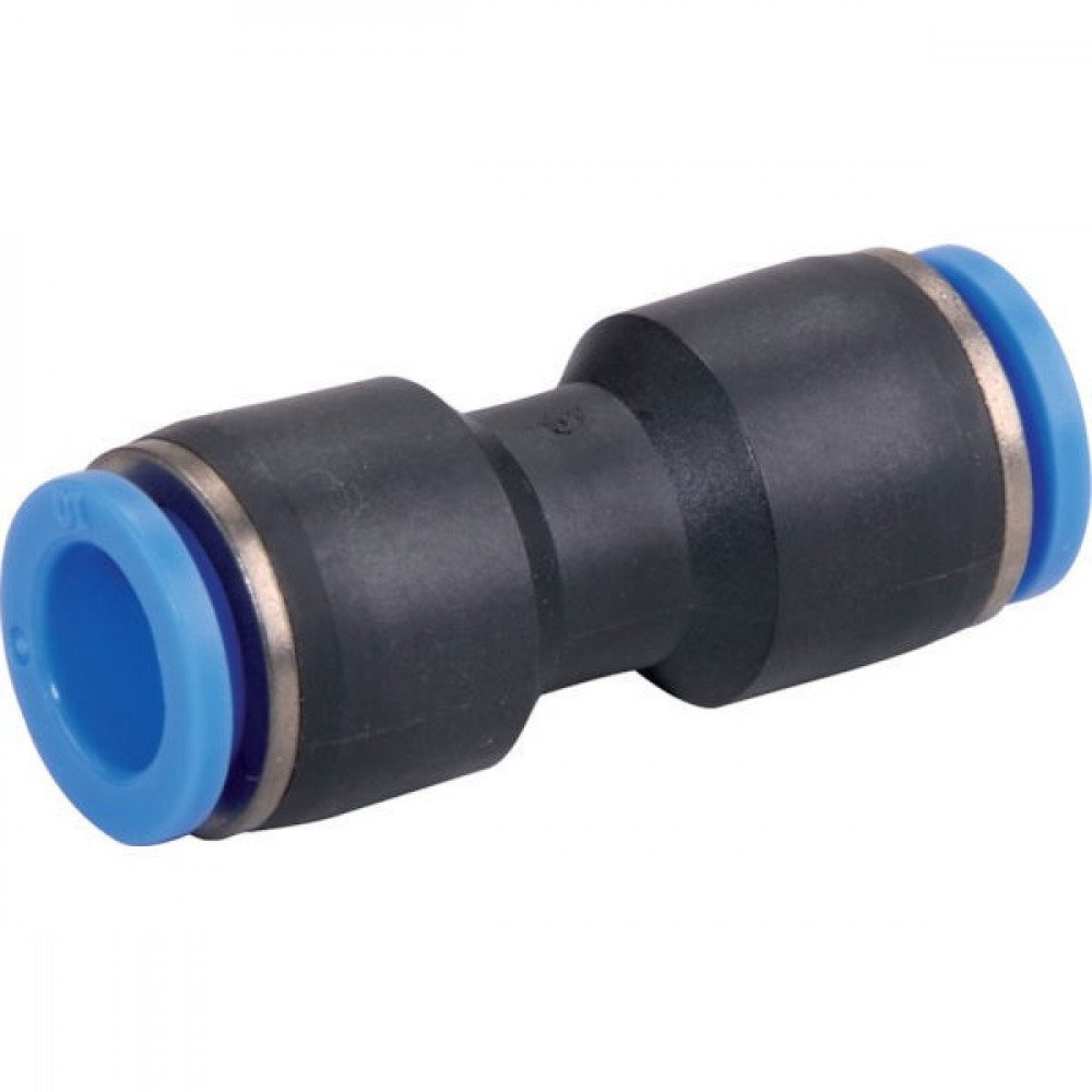

This plastic air coupling is designed to provide a strong and leak-free connection between two 12mm pneumatic hoses. Thanks to its straight design, the coupling is easy to install and ideal for applications where a straight passage is required.

High-quality materials for durability

The body of the coupling is made from a combination of nickel-plated brass and PA 66, ensuring a robust and corrosion-resistant construction. The release ring is made of PA 66, while the toothed ring is made of stainless steel, contributing to the long lifespan of the product.

Efficient sealing and easy disconnection

The coupling is equipped with a special O-ring made of NBR material that ensures a reliable seal, preventing air leaks. The toothed ring holds the hose firmly in place, and by pressing the release ring, the hose can be easily disconnected without extra tools.

Suitable for various applications

With a maximum working pressure of -0.95 to +20 bar, this coupling is suitable for a wide range of pneumatic applications. The temperature range of 0°C to +65°C allows the coupling to be used in different environments.

Key specifications

• Type: Straight
• Connection diameter: 12 mm
• Maximum working pressure: -0.95 to +20 bar
• Body material: Nickel-plated brass/PA 66
• Release ring material: PA 66
• Toothed ring material: Stainless steel
• Seal material: NBR
• Temperature range: 0°C to +65°C

Easy installation and maintenance

Thanks to the push-in design, installation is quick and easy, without the need for special tools. Maintenance is minimal, contributing to the efficient operation of your pneumatic systems.

Compatibility with different hoses

This coupling is compatible with standard 12mm PUN and PA hoses, ensuring versatility in use and easy integration into existing systems.
