Efficient connection for pneumatic systems

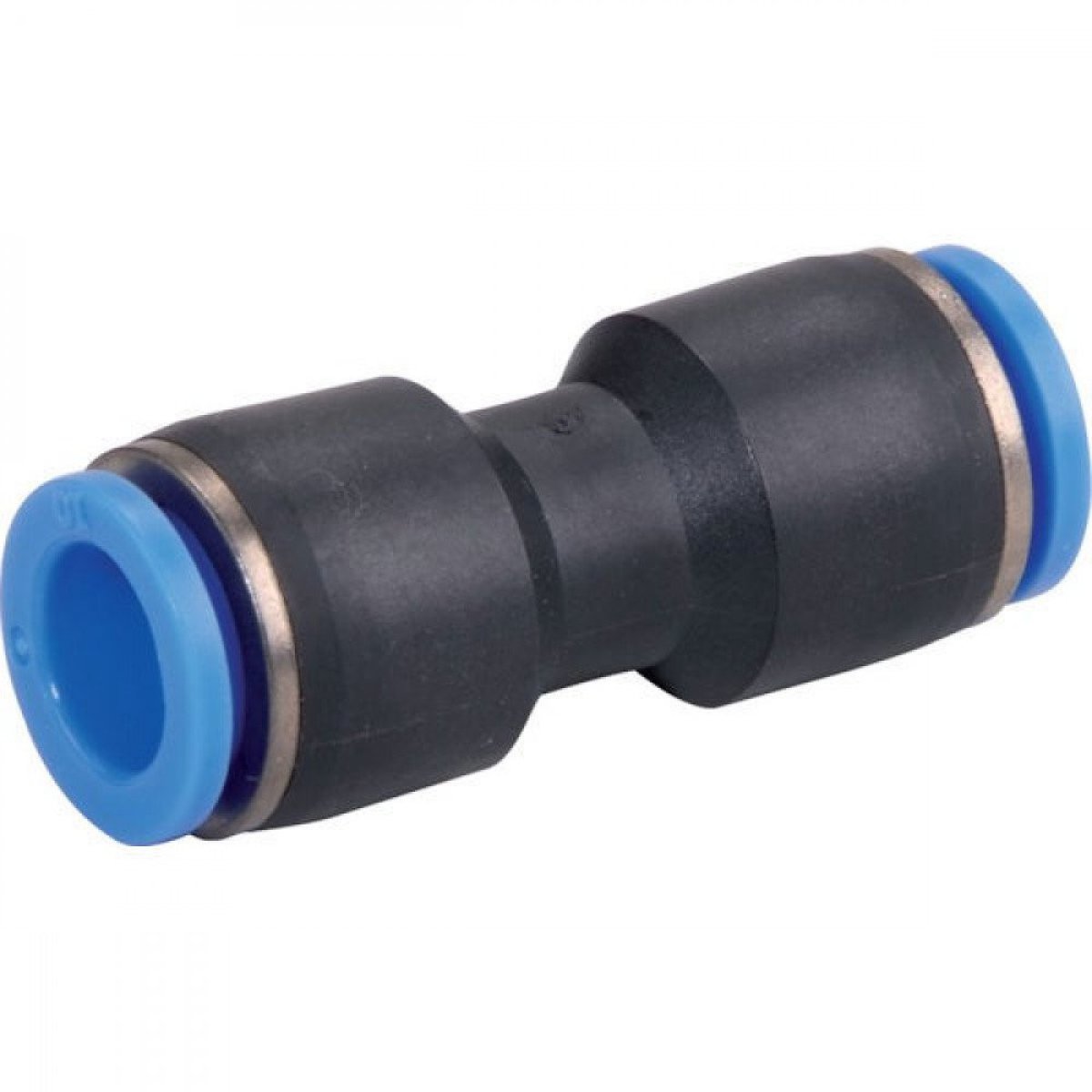

This straight plastic air coupling is designed to quickly and securely connect 4 mm pneumatic hoses. Thanks to the push-in mechanism, installation is simple and tool-free.

High-quality materials for durability

The coupling is made of:

• Housing: Nickel-plated brass and PA 66 for corrosion resistance and strength.
• Release ring: PA 66 for smooth operation.
• Toothed ring: Stainless steel (SS) for a firm grip on the hose.
• Seal: NBR for reliable sealing.

Suitable for various applications

With a maximum working pressure of -0.95 to +20 bar and a temperature range of 0°C to +65°C, this coupling is ideal for a wide range of pneumatic applications in the automotive sector and beyond.

Easy installation and maintenance

The push-in design allows for quick assembly without additional tools. The release ring ensures you can easily disconnect the hose when needed.

Specifications

• Type: Straight
• Connection diameter: 4 mm
• Maximum working pressure: -0.95 to +20 bar
• Temperature range: 0°C to +65°C
• Housing material: Nickel-plated brass/PA 66
• Release ring material: PA 66
• Toothed ring material: SS
• Seal material: NBR
• Quantity: 1

Areas of application

This coupling is suitable for:

• Pneumatic systems: For connecting hoses in compressed air systems.
• Automotive applications: Ideal for use in cars and other vehicles.
• Industrial machines: Suitable for various industrial applications where pneumatic connections are needed.

With this plastic air coupling, you ensure a reliable and durable connection in your pneumatic systems.
