Reliable connection for pneumatic systems

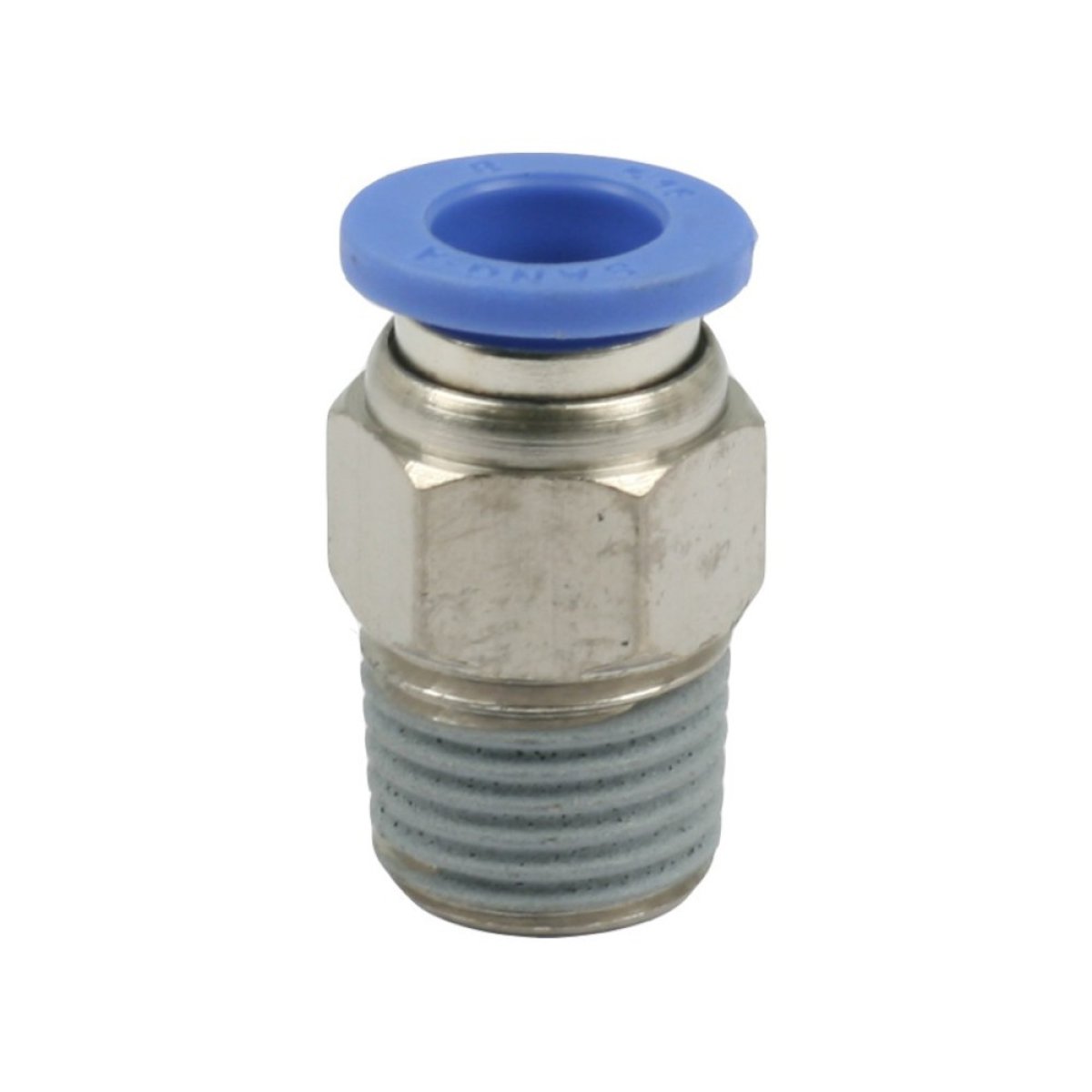

This plastic push-in connector is designed to safely and efficiently connect pneumatic hoses with a diameter of 8 mm to components with a 1/4" external thread. Thanks to its straight design, this connector is ideal for applications where a linear connection is required.

High-quality materials for durability

The connector housing is made from a combination of nickel-plated brass and PA 66, providing excellent resistance to corrosion and wear. The release ring is made of PA 66, while the locking ring is made of stainless steel (SS), contributing to the robustness and reliability of the connector.

Efficient sealing and easy installation

The connector is equipped with a special O-ring made of NBR material that ensures a reliable seal, preventing air leakage. The locking ring holds the hose securely in place, and by pressing the release ring, the hose can be easily disconnected without additional tools.

Suitable for various applications

With a maximum working pressure of -0.95 to +20 bar, this connector is suitable for a wide range of pneumatic applications, from industrial machines to automotive tools. The temperature range and material selection make it possible to use the connector in different environments.

Specifications

• Type: Straight
• Hose diameter: 8 mm
• External thread: 1/4"
• Maximum working pressure: -0.95 to +20 bar
• Housing material: Nickel-plated brass/PA 66
• Release ring material: PA 66
• Locking ring material: SS
• Seal material: NBR
• Quantity: 1

Advantages at a glance

• Durable materials: Long lifespan and resistant to corrosion.
• Easy installation: Quick assembly without extra tools.
• Reliable sealing: Prevents air leakage and ensures efficient operation.
• Versatile use: Suitable for various pneumatic applications.

With this plastic pneumatic connector, you ensure a reliable and efficient connection in your pneumatic systems, contributing to the optimal performance of your equipment.
