Efficient connection for pneumatic systems

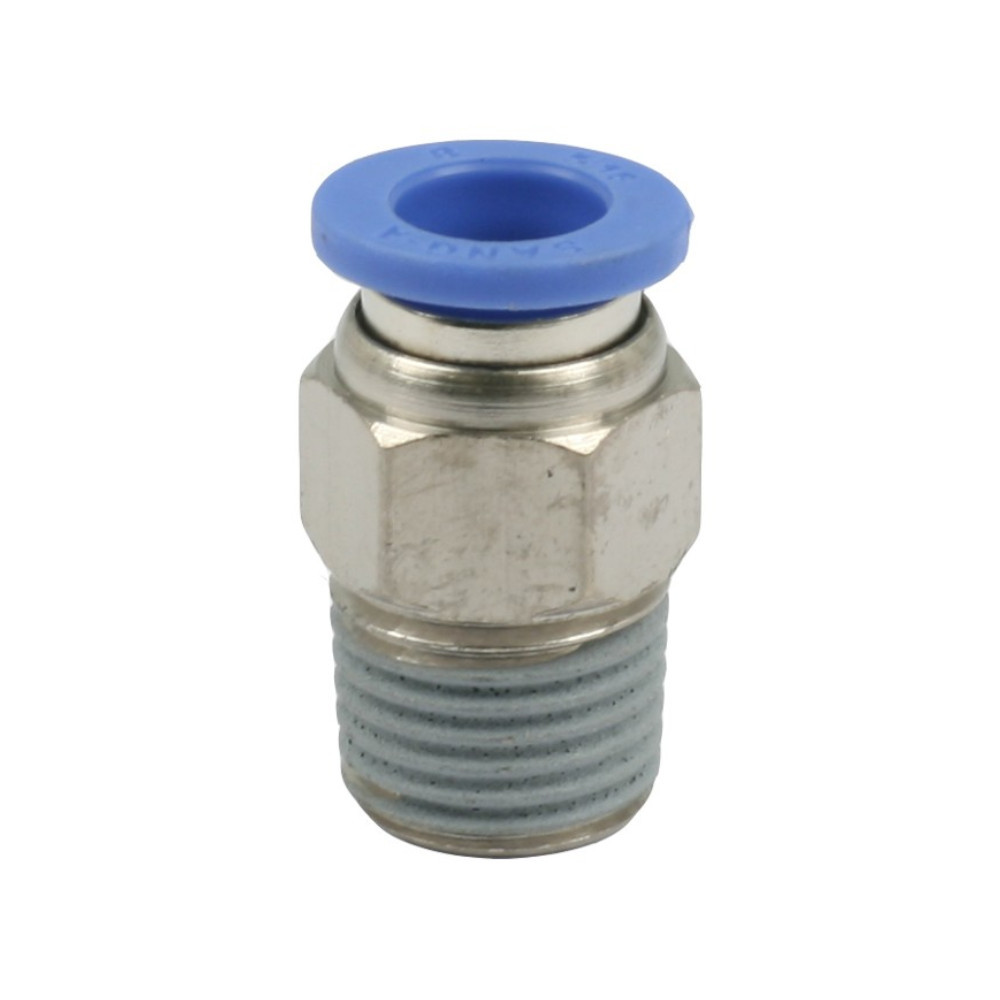

This plastic push-in fitting is designed to easily and securely connect pneumatic hoses with a diameter of 8 mm to components with a 1/8" external thread. Thanks to its user-friendly design, fast and leak-free installation is guaranteed.

High-quality materials for durability

The fitting is made from high-quality materials:

• Body: Nickel-plated brass and PA 66 for a robust and corrosion-resistant housing.
• Release ring: PA 66, ensuring smooth operation when disconnecting.
• Toothed ring: Stainless steel (SS) for a firm grip on the hose.
• Seal: NBR (nitrile rubber) for a reliable seal against air leakage.

Easy installation and use

Installing this push-in fitting is simple:

1. Connect hose: Push the 8 mm hose into the fitting until it is firmly in place. The toothed ring grips the hose, while the O-ring ensures an airtight seal.
2. Disconnect hose: Press the release ring to reduce the grip of the toothed ring and easily pull the hose out of the fitting.

Technical specifications

• Type: Straight
• Hose diameter: 8 mm
• External thread: 1/8"
• Maximum working pressure: -0.95 to +20 bar
• Temperature range: 0°C to +60°C

Application areas

This push-in fitting is suitable for various applications, including:

• Automotive: Connecting pneumatic systems in cars.
• Industrial machines: Connecting air lines in production lines.
• Workshops: Use in various pneumatic tools and equipment.

Key benefits

• Quick installation: No tools required for connecting or disconnecting hoses.
• Reliable sealing: The combination of O-ring and toothed ring ensures a leak-free connection.
• Durable: High-quality materials guarantee a long service life, even with intensive use.

With this plastic pneumatic connector, you ensure an efficient and reliable connection in your pneumatic systems.
