Efficient connection for pneumatic systems

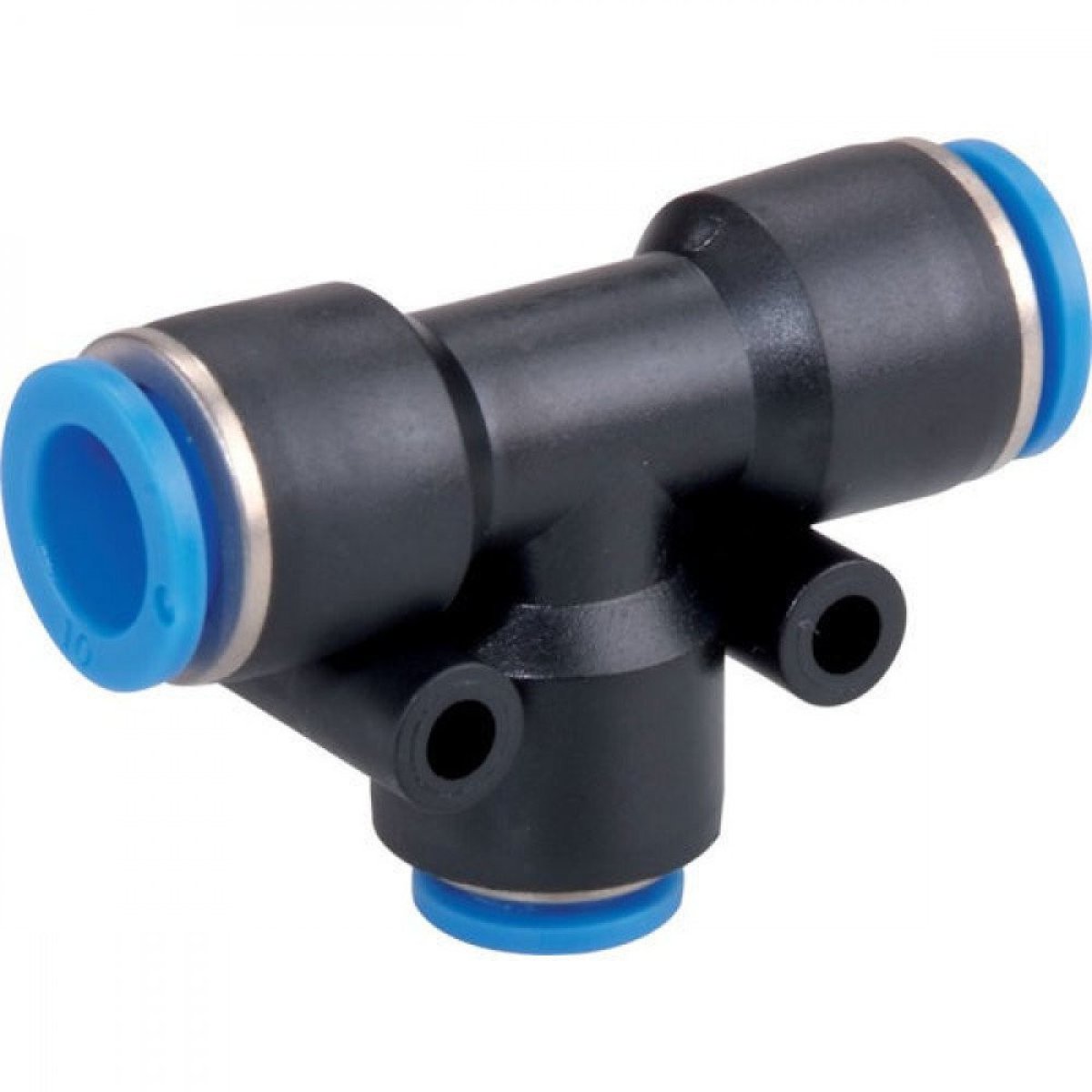

This plastic air coupling in T-piece form is designed to securely and leak-free connect three pneumatic hoses with a diameter of 10 mm. Thanks to its thoughtful design and high-quality materials, this coupling is ideal for a wide range of applications in pneumatic systems.

High-quality materials for durability

The housing of the coupling is made from a combination of nickel-plated brass and PA 66, ensuring a robust and corrosion-resistant construction. The release ring is made of PA 66, while the toothed ring is made of stainless steel (SS). The seal is made from NBR, contributing to reliable and long-lasting operation.

Easy installation and use

The push-in design enables quick and easy installation without additional tools. The special O-ring provides excellent sealing, while the toothed ring firmly holds the hose in place. By pressing the release ring, the hose can be easily disconnected, facilitating maintenance and adjustments.

Technical specifications

• Type: T-piece push-in coupling
• Diameter: 10 mm
• Maximum working pressure: -0.95 to +20 bar
• Temperature range: 0°C to +65°C
• Housing material: Nickel-plated brass/PA 66
• Release ring material: PA 66
• Toothed ring material: SS
• Seal material: NBR
• Number of pieces: 1

Application possibilities

This T-piece push-in coupling is suitable for various pneumatic applications, including:

• Vacuum systems: Reliable connections in systems with negative pressure.
• Compressed air systems: Efficient splitting and joining of air lines.
• Automation equipment: Integration into machines and production lines for optimal performance.

Hose compatibility

The coupling is compatible with standard 10 mm PUN and PA hoses, ensuring wide applicability in different pneumatic systems. The sturdy construction and reliable sealing guarantee long-lasting and trouble-free operation.
