Reliable connection for pneumatic applications

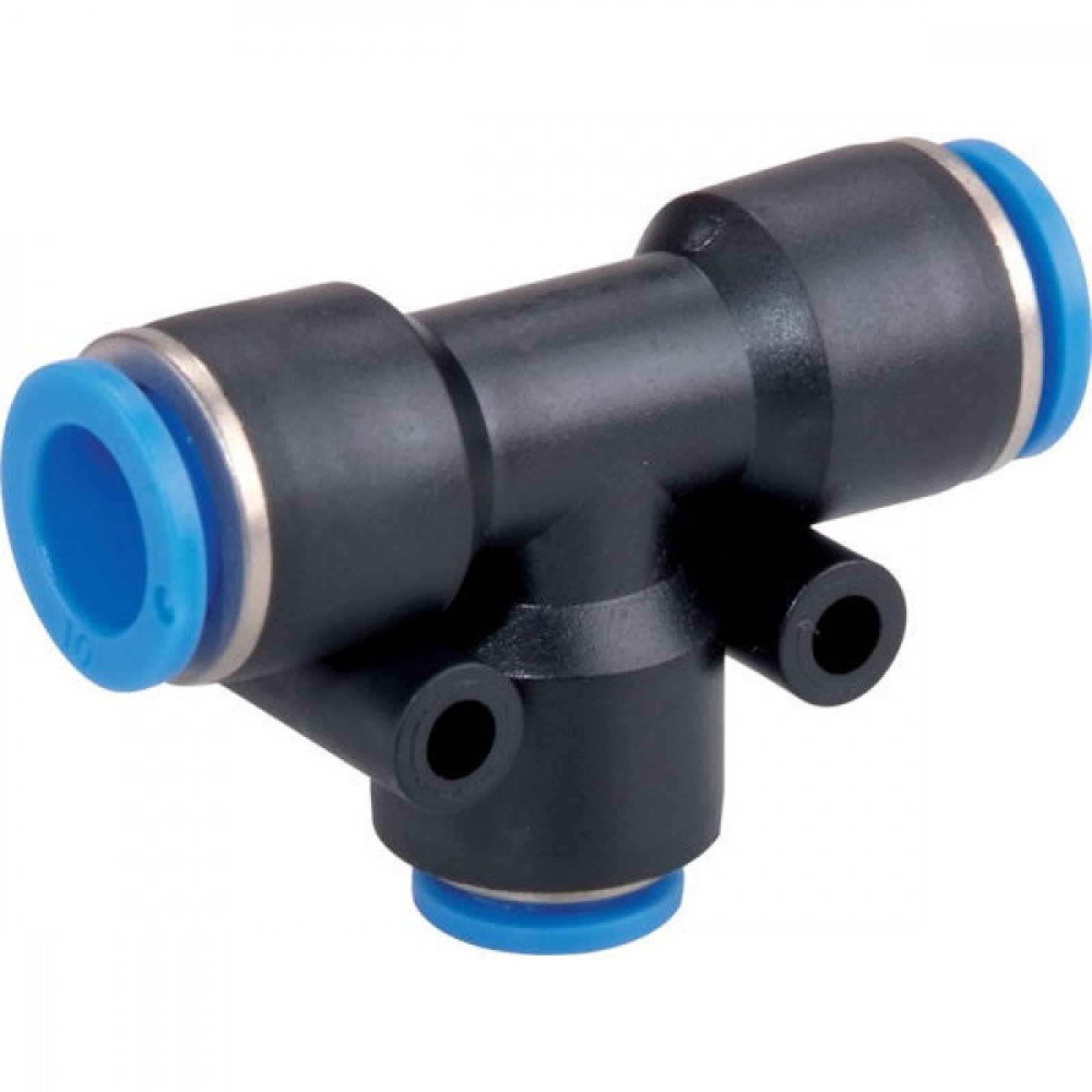

This plastic air coupling in T-piece form is designed to securely and leak-free connect three pneumatic hoses with a diameter of 6 mm. Thanks to its thoughtful design and high-quality materials, this coupling is ideal for various pneumatic systems.

Easy installation and use

The push-in coupling uses a push-in mechanism, allowing you to easily connect the hoses without extra tools. The special O-ring ensures a reliable seal, while the toothed ring holds the hose firmly in place. By pressing the release ring, you can effortlessly disconnect the hose.

High-quality materials for durability

• Housing: Nickel-plated brass and PA 66 for a robust construction.
• Release ring: Made of PA 66 for long service life.
• Toothed ring: Stainless steel (SS) for extra strength.
• Seal: NBR material for optimal sealing.

Suitable for various pressure and temperature ranges

This coupling is suitable for a working pressure of -0.95 to +20 bar and can handle temperatures from -20°C to +60°C. This makes the product versatile for various industrial and automotive applications.

Applications in the automotive sector

In the automotive sector, this T-piece coupling is ideal for splitting or joining air lines in compressed air systems. The reliable seal and easy installation ensure efficient operation of the system.

Specifications

• Type: T-piece push-in coupling
• Diameter: 6 mm
• Working pressure: -0.95 to +20 bar
• Temperature range: -20°C to +60°C
• Housing material: Nickel-plated brass/PA 66
• Release ring material: PA 66
• Toothed ring material: SS
• Seal material: NBR
• Number of pieces: 1

With this plastic air coupling T-piece 3x Ø6mm, you are assured of a reliable and durable solution for your pneumatic systems.
