Reliable connection for pneumatic applications

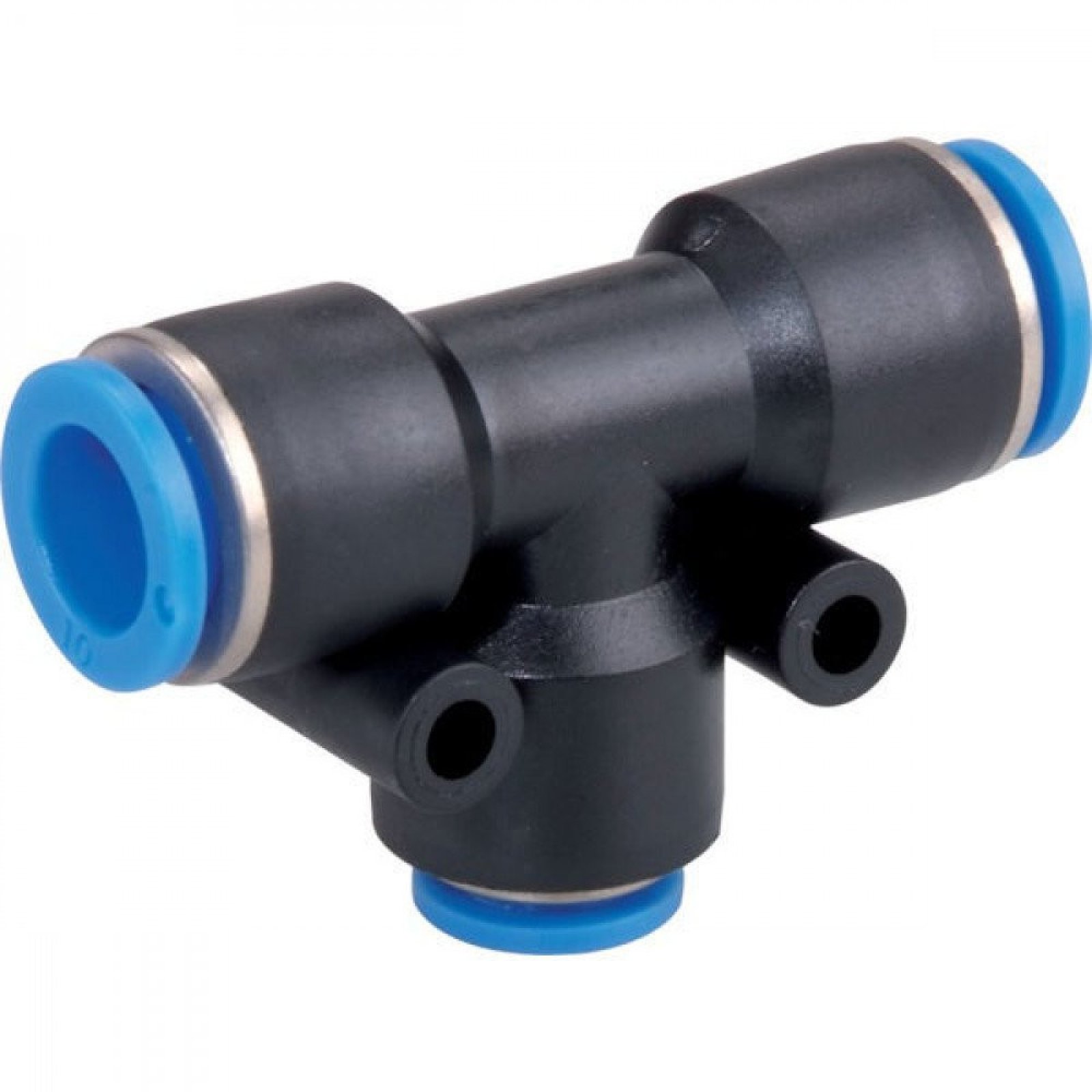

This plastic air coupling in T-piece design is engineered to safely and efficiently connect three 8 mm pneumatic hoses. Thanks to its thoughtful design and high-quality materials, this coupling offers a reliable solution for a wide range of pneumatic systems.

High-quality materials for durability

The coupling housing is made from a combination of nickel-plated brass and PA 66 plastic, providing an excellent balance between strength and lightweight properties. The release ring is made of PA 66, while the toothed ring is made of stainless steel (SS), contributing to the product's durability and corrosion resistance. The seal is made from NBR (nitrile rubber), known for its excellent sealing properties and resistance to oils and greases.

Easy installation and use

The push-in design enables quick and easy installation without the need for additional tools. The special O-ring ensures an airtight seal, while the toothed ring securely holds the hose in place. By pressing the release ring, the hose can be easily disconnected, facilitating maintenance and adjustments.

Technical specifications

• Type of coupling: T-piece
• Connection diameter: 8 mm
• Maximum working pressure: -0.95 to +20 bar
• Temperature range: 0°C to +60°C
• Housing material: Nickel-plated brass/PA 66
• Release ring material: PA 66
• Toothed ring material: SS
• Seal material: NBR

Application possibilities

This T-piece coupling is ideal for splitting or merging airflows in various pneumatic systems. Whether for industrial applications, automotive workshops, or other situations where compressed air is used, this coupling provides a reliable and durable solution.

Advantages at a glance

• Quick installation: Thanks to the push-in design without extra tools.
• Durable materials: Resistant to corrosion and wear.
• Secure connection: O-ring and toothed ring ensure a firm and airtight connection.
• Flexible use: Suitable for various pneumatic applications with 8 mm diameter hoses.

With this plastic air coupling in T-piece design, you are assured of a reliable and durable connection in your pneumatic systems.
