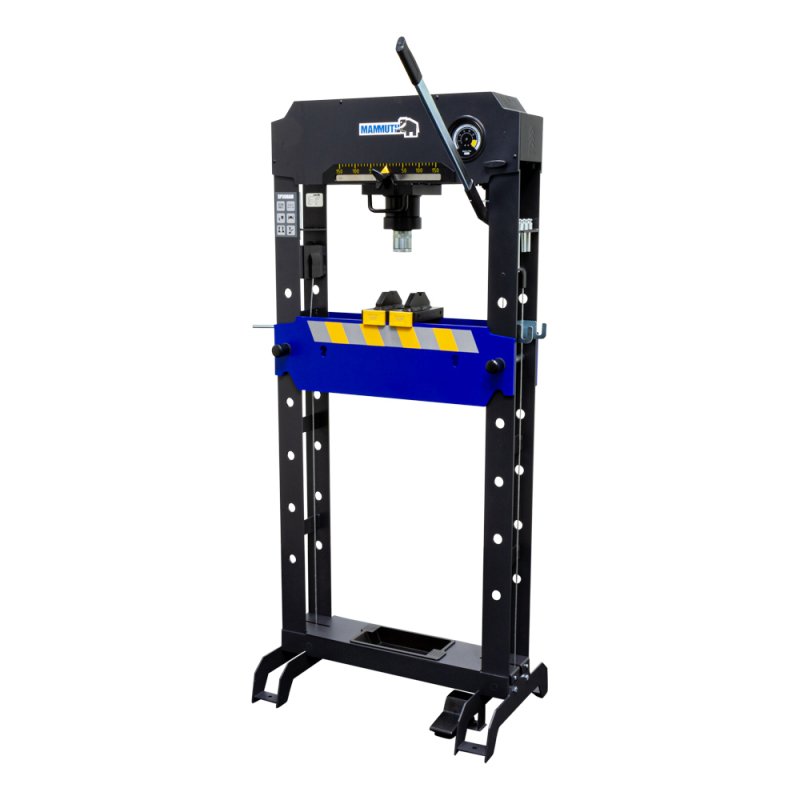

MAMMUTH HYDRAULIC AND PNEUMATIC WORKSHOP PRESS WITH FOOT PEDAL 50 TON | SP50HAM

This Mammuth work bed press is of high quality and very stable thanks to the fully welded heavy frame. The work bed is easily manually adjustable in height using the hand winch. The press can be operated with the lever and pump (has two speeds) and with a foot pedal on compressed air. The hydraulic cylinder is movable in width (bearing) and is equipped with a height-adjustable, 7.5cm long spindle. Through the integrated pressure gauge, the press pressure is read.



Comes with 2 heavy press blocks, 8 press pins and a parts bin.



Specifications:

- Capacity: 50 tons

- Cylinder stroke: 220mm

- Cylinder diameter: 66mm

- Bed width: 750mm

- Bed depth: 200mm

- Working range: 780mm

- Length of screw spindle: 75mm

- Working pressure: 8 - 12 bar

- Air connection: 1/4" NPT external thread

- Two-stage pump

- Integrated pressure gauge

- Adjustable cylinder + scale arrangement

- Hand winch for adjusting work bed

- Compressed air foot pedal



Product dimensions:

- Product length: 930 mm

- Product width: 535 mm

- Product height: 1,900 mm

- Product weight: 250.0 Kg



Package dimensions:

- Package Length: 1,000 mm

- Package Width: 1,860 mm

- Packaging Height: 420 mm

- Packaging weight: 288.00 Kg
