Protection of cables and pipes

When installing electrical wiring in cars, it is essential to protect cables from sharp edges of metal panels. Grommets provide an effective solution by forming a protective barrier between the cable and the panel, preventing wear and potential damage.

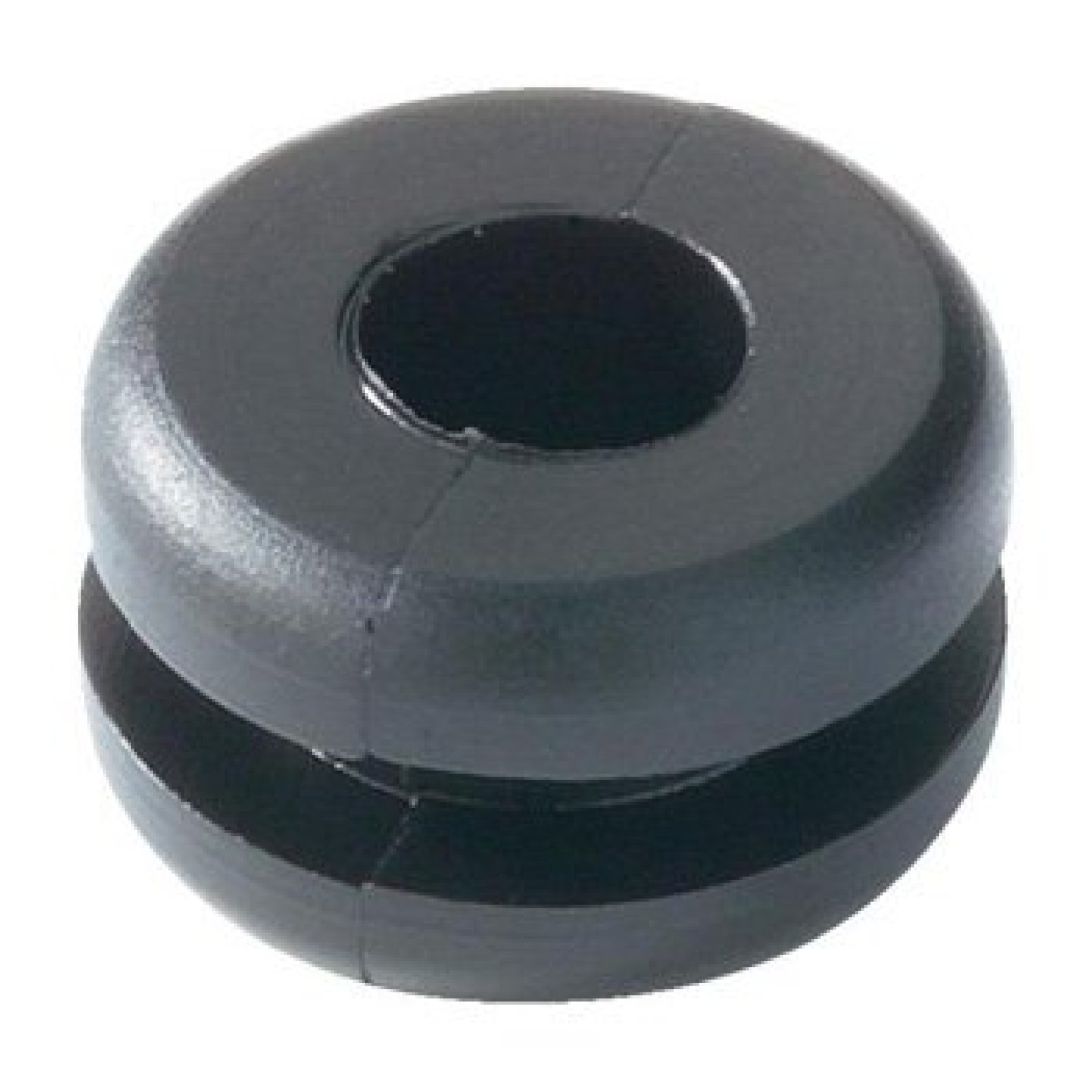

Specifications of the grommet

This grommet is designed for mounting holes with a diameter of 14.3 mm and offers a cable passage opening of 6.35 mm. The dimensions are as follows:

• Outer diameter (D): 14.3 mm
• Passage opening (A): 6.35 mm
• Flange thickness (B): 1.59 mm
• Total height (C): 9.53 mm
• Inner flange diameter (E): 6.35 mm

Material and durability

Made from high-quality PVC, this grommet offers flexibility and resistance to various environmental influences. The material withstands temperatures ranging from -25°C to 70°C, with short-term peaks up to 80°C. This ensures reliable performance under a wide range of conditions.

Application possibilities

These grommets are suitable for various applications within the automotive sector, including:

• Electrical wiring: Protection of cables routed through metal panels.
• Hydraulic lines: Preventing wear when routing lines through body parts.
• Pneumatic systems: Protecting air hoses from sharp edges.

Ease of installation

Thanks to the flexible properties of the PVC material, these grommets are easy to install. They fit snugly into the mounting hole and provide a firm grip, making additional fasteners unnecessary. This saves time and effort during installation.

Packaging and availability

This set contains 20 grommets, sufficient for multiple installations or projects. The grommets are individually packaged to prevent damage during transport and are ready for immediate use upon receipt.
