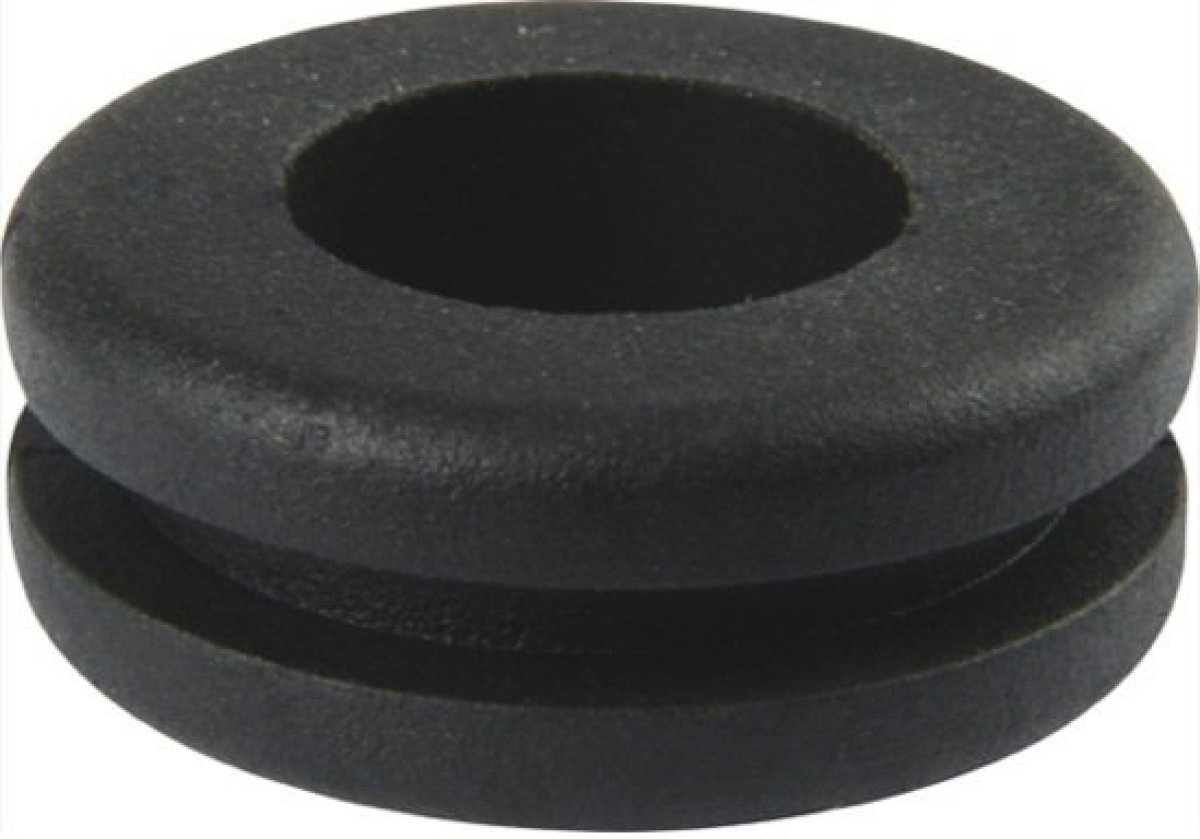

Protect your cables with the PVC grommet open black 16.0 x 24.0 x 30.0 mm

This black PVC grommet with dimensions of 16.0 x 24.0 x 30.0 mm offers an effective solution for protecting cables routed through metal panels or body parts. Using this grommet prevents wear and damage to cables caused by sharp edges.

High-quality materials and dimensions

The grommet is made from soft PVC (Polyvinyl chloride) with a Shore A hardness of 60°, ensuring flexibility and durability. The specifications are:

• Bore diameter: 16.0 mm
• Outer diameter: 24.0 mm
• Total height: 30.0 mm
• Panel thickness: Suitable for panels with a thickness of 3.0 mm

Easy installation

Thanks to the flexible material, installing this grommet is easy. Simply place the grommet in the panel hole, where it clicks securely into place. This allows for quick and efficient assembly without extra tools.

Applications in various sectors

This grommet is ideal for use in different sectors, including:

• Automotive: Protecting cables in cars from wear caused by sharp metal edges.
• Electronics: Safely routing wiring through enclosures and panels.
• Industrial machines: Preventing cable damage in machines and equipment.

Benefits of the PVC grommet

• Protection: Prevents wear and damage to cables from sharp edges.
• Flexibility: The soft PVC material adapts to various panel thicknesses.
• Easy installation: Quick assembly without extra tools.
• Durability: Resistant to temperatures from -25°C to 70°C, with short-term peaks up to 80°C.

Technical specifications

• Material: Soft PVC (Polyvinyl chloride), Shore A 60°
• Color: Black
• Temperature resistance: -25°C to 70°C (short-term up to 80°C)
• Suitable panel thickness: 3.0 mm

With this PVC grommet, you ensure reliable and durable protection for your cables, extending the lifespan of your electrical systems and reducing maintenance costs.
