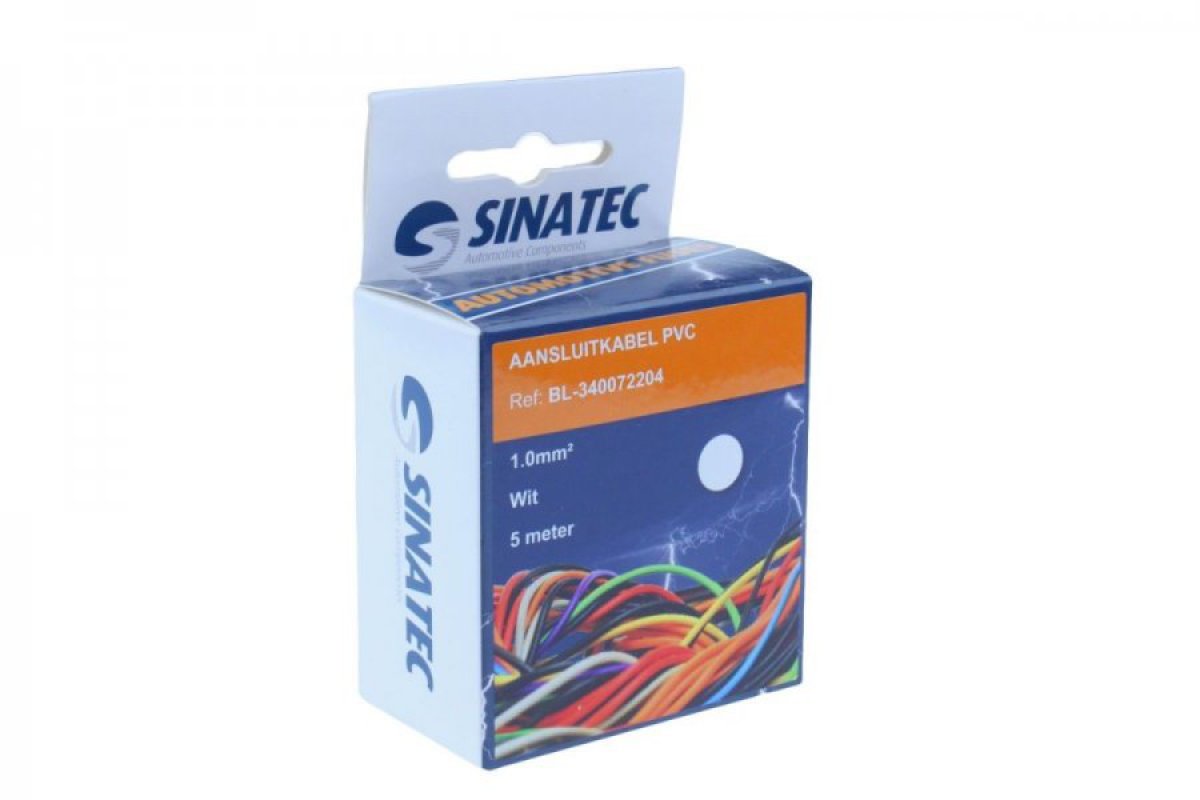

High-quality single-core PVC cable for automotive applications

This single-core PVC cable with a cross-section of 1.0 mm² and a length of 5 meters is specially designed for use in cars and other vehicles. Thanks to its flexible construction and heat-resistant properties, this cable is ideal for various electrical installations.

Flexibility and easy installation

The cable is made of fine-stranded bare copper wires, providing high flexibility. This makes installation in tight spaces and complex wiring easier. The minimum bending radius is six times the outer diameter, contributing to the cable's versatility.

Heat resistance and durability

With a maximum operating temperature of up to 105°C, this cable is suitable for applications where high temperatures occur. The PVC insulation offers protection against various fluids such as petrol, diesel, oil, battery acid, and engine coolant, extending the cable's lifespan.

Technical specifications

• Nominal conductor cross-section: 1.0 mm²
• Nominal conductor construction: 30 x 0.2 mm²
• Maximum conductor resistance: 18.5 Ohm/km
• Outer diameter: Ø 1.85 - 1.95 mm
• Minimum insulation thickness: 0.24 mm
• Type of insulation: PVC compound T2
• Insulation hardness: 95 ± 5 shore A
• Maximum operating voltage: 300V
• Temperature range: -30°C to +105°C

Application possibilities

This cable is suitable for various applications within the automotive sector, including:

• Electrical wiring in cars and motorcycles
• Installations in electrical equipment
• Applications requiring high temperature and chemical resistance

Quality standards and certifications

The cable complies with the following standards and guidelines:

• ISO 6722:2002
• DIN 72551/6
• EEG Directive 2000/53
• FIAT 91107/18

These certifications guarantee the quality and reliability of the cable for professional use.

Safety and reliability

The cable is free from chromium (VI), cadmium, lead, and mercury, contributing to a safer working environment and less environmental impact. The flame-retardant properties of the PVC insulation increase safety when used in vehicles.

Summary

With its flexible construction, heat resistance, and chemical resistance, this single-core PVC cable of 1.0 mm² and 5 meters length is an excellent choice for various automotive applications. The cable meets strict quality standards and offers reliable performance in demanding environments.
