Reliable protection for your electrical systems

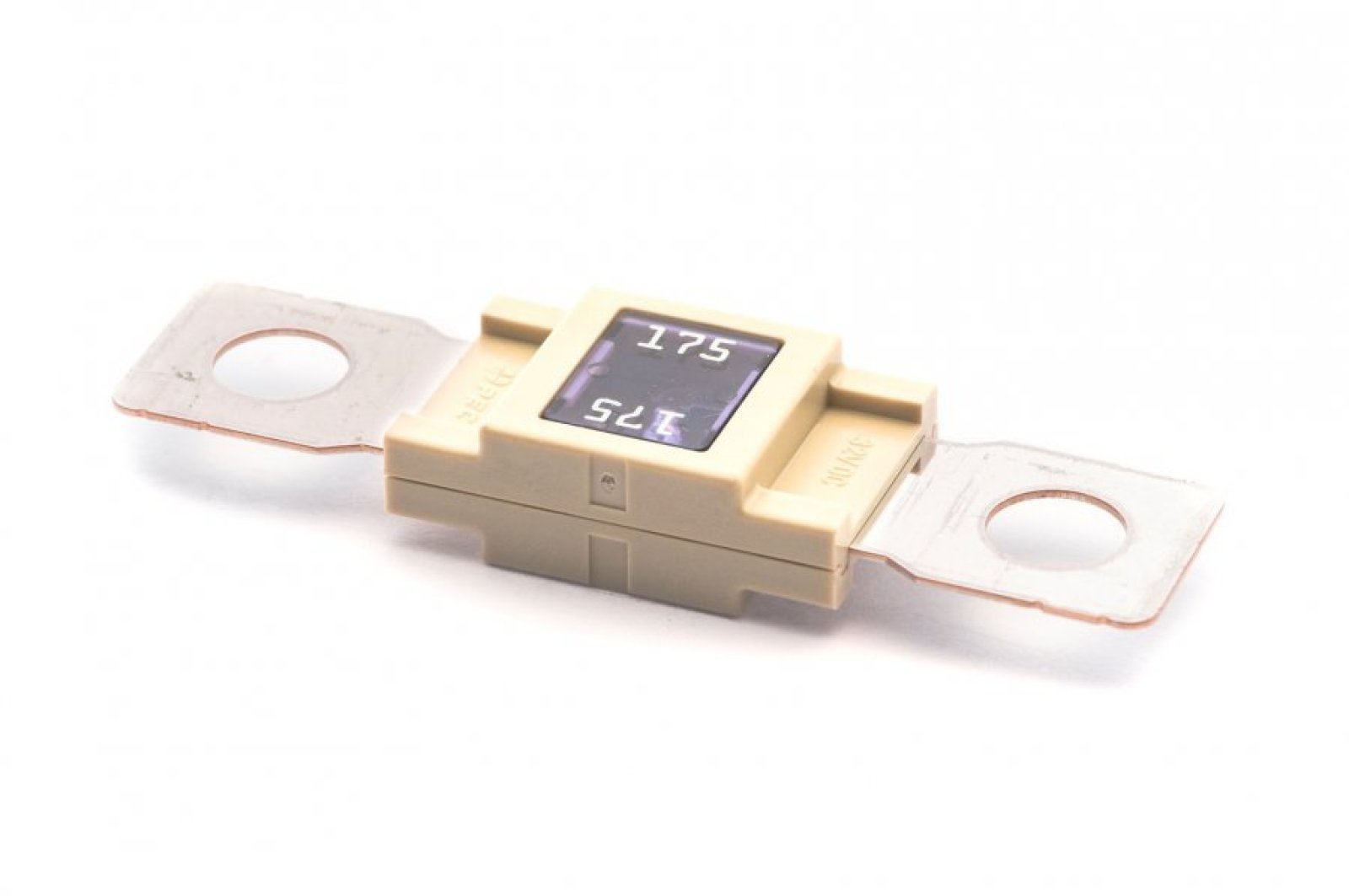

The 175A MEGA fuse offers a robust solution for protecting electrical installations in cars, motorhomes, and boats. With a maximum voltage of 32V, this fuse is suitable for various direct current applications.

Technical specifications

• Rated current: 175A
• Maximum voltage: 32V DC
• Dimensions:
• Length: 68.6 mm
• Width: 19 mm
• Height: 9 mm
• Connection holes: M8, center distance 50.8 mm
• Color code: White

Applications and benefits

This MEGA fuse is ideal for protecting heavy electrical circuits against overload and short circuit. Thanks to its slow-blow characteristic, it is particularly suitable for applications with high inrush currents, such as:

• Bow thrusters
• Anchor winches
• Inverters
• High-power audio installations

Installation and compatibility

The fuse is equipped with M8 connection holes with a center distance of 50.8 mm, ensuring easy and secure mounting. It is compatible with standard MEGA fuse holders and can be easily integrated into existing electrical systems.

Quality and compliance

This fuse meets international standards such as ISO 8820-5 and JASO D612, and is REACH and RoHS compliant. The fuse element with diffusion tin drop technology guarantees reliable operation and a high melting capacity up to 2000A at 32V DC.

Important considerations

When choosing the right fuse, it is essential to calculate the peak current of your installation and select a fuse value just above this peak current. This ensures optimal protection and prevents unwanted shutdowns.

Summary of features

• Rated current: 175A
• Maximum voltage: 32V DC
• Dimensions: 68.6 x 19 x 9 mm
• Connection holes: M8, center distance 50.8 mm
• Color code: White
• Compliance: ISO 8820-5, JASO D612, REACH, RoHS
• Melting capacity: Up to 2000A at 32V DC

With this 175A MEGA fuse, you are assured of reliable and safe protection for your electrical installations.
