Simple and reliable electrical connections

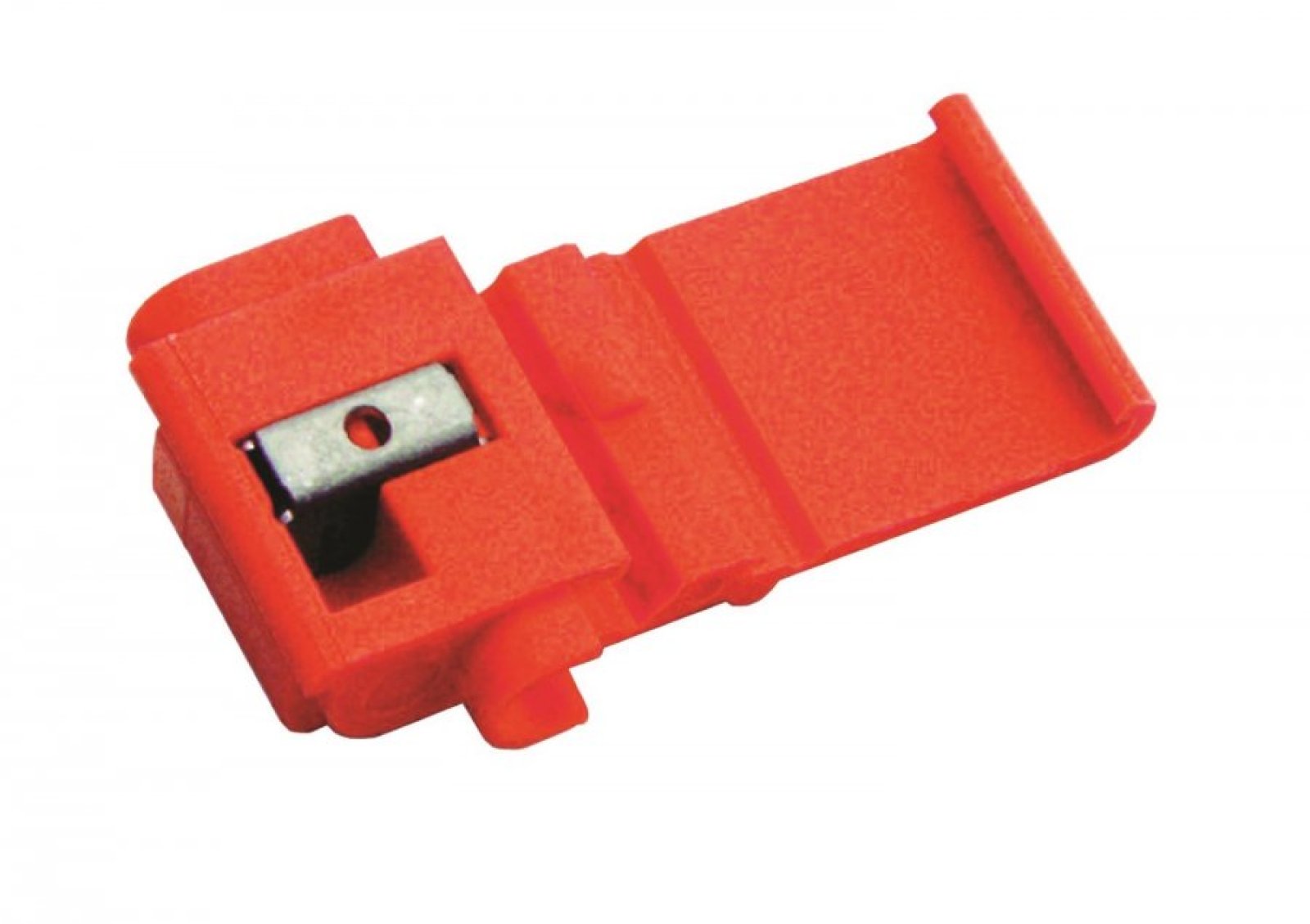

The 3M™ Scotchlok™ IDC Connector 558 enables you to quickly and reliably make electrical connections without having to strip or solder wires. Thanks to the unique 'U' contact, the insulation is pierced and a strong, resilient connection is created between the wires.

Suitable for various applications

This red connector is ideal for general electrical connections in cars, boats, vans, or trailers. Whether you are working on vehicle electronics wiring or other electrical systems, the Scotchlok 558 offers an efficient solution.

Compatibility and specifications

• Wire range: Suitable for 0.5 mm² to 1.5 mm² solid or stranded wires.
• Insulation material: Polypropylene, which provides durable and safe insulation.
• Temperature resistance: Withstands temperatures up to 105°C, making it suitable for various environments.
• Voltage rating: 600V for building wiring and 1000V for panels, fixtures, and lighting fixtures.

Easy installation

Using the Scotchlok 558 is simple:

1. Place the connector over the wires to be connected.
2. Use pliers to press down the metal 'U' contact, piercing the insulation and firmly connecting the wires.
3. Close the connector lid to insulate and protect the connection.

Quality guarantee

The 3M™ Scotchlok™ IDC Connector 558 is UL certified, CSA certified, and complies with the RoHS 2011/65/EU directive, ensuring a high standard of quality and reliability in various applications.

Packaging and availability

These connectors are available in packs of 5, ideal for both small projects and larger installations.
