Application and use

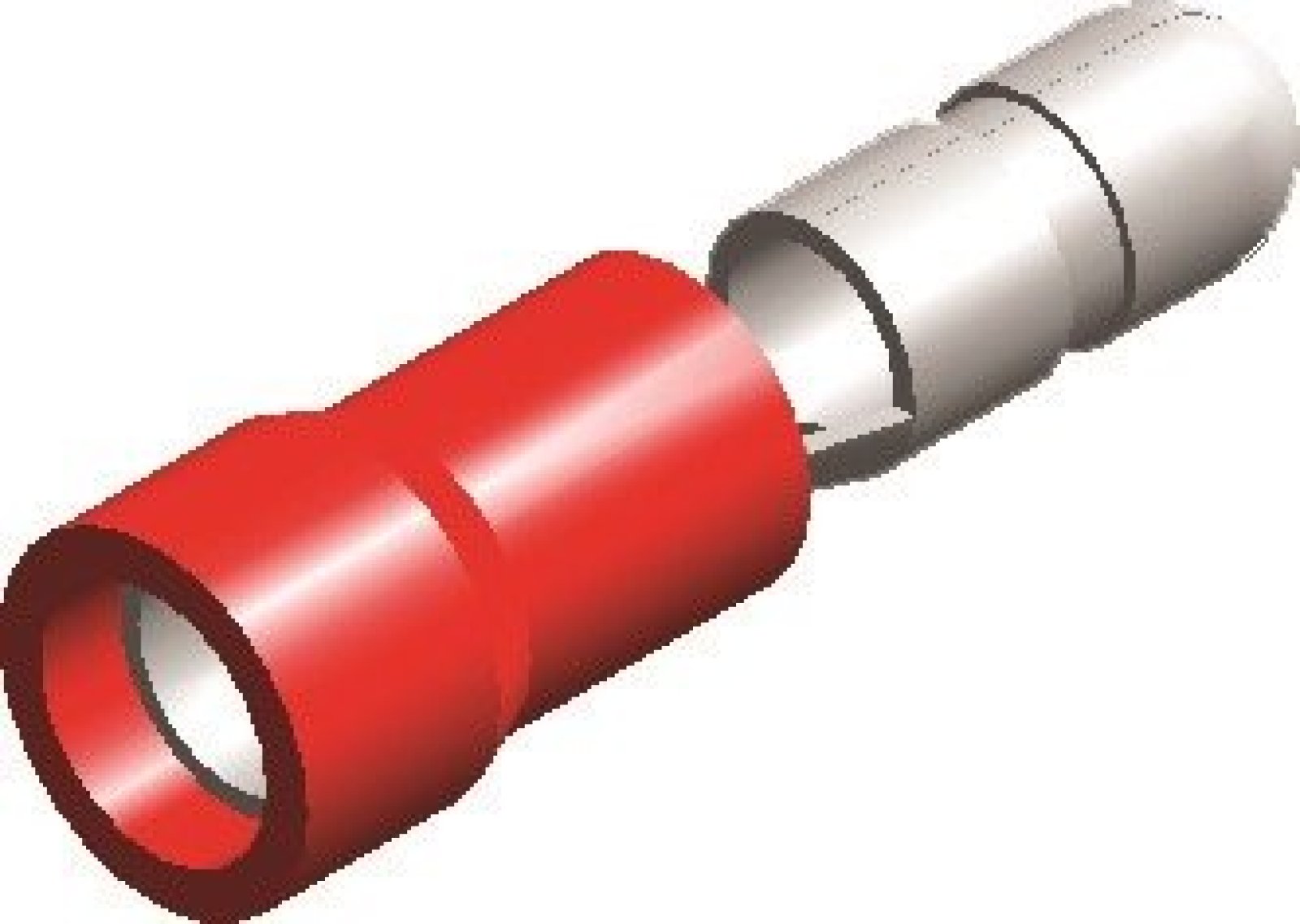

The PVC cable terminal 547 male red round 4.0 mm is designed for safely and efficiently connecting electrical wires with a cross-section of 0.5 to 1.5 mm². This cable terminal is ideal for various electrical applications, both in the automotive sector and other industrial environments.

Technical specifications

• Type: Round male cable terminal
• Material: Tinned copper with PVC insulation
• Color: Red
• Suitable for cable cross-section: 0.5 - 1.5 mm²
• Diameter: 4.0 mm
• Maximum voltage: 300V
• Temperature range: -40°C to +75°C
• Length: 21.5 mm
• Packaging: Set of 5 pieces

Benefits of the PVC cable terminal 547

• Reliable connection: Ensures a strong and safe electrical connection.
• Durable material: Made of tinned copper for optimal conductivity and corrosion resistance.
• Easy installation: Thanks to the PVC insulation and design, the cable terminal is easy to install.

Areas of application

This cable terminal is suitable for:

• Automotive applications
• Industrial electrical installations
• Household electrical projects

Installation instructions

1. Strip the insulation from the wire over a length of about 7 mm.
2. Insert the exposed wire into the cable terminal.
3. Use a suitable crimping tool to firmly crimp the cable terminal onto the wire.

Compatibility

This cable terminal is compatible with female round cable terminals of 4.0 mm, such as the PVC cable terminal 548 female round red 4.0 mm.

Packaging and availability

The PVC cable terminal 547 male red round 4.0 mm is available in sets of 5 pieces, ideal for small projects or as an addition to your toolbox.
