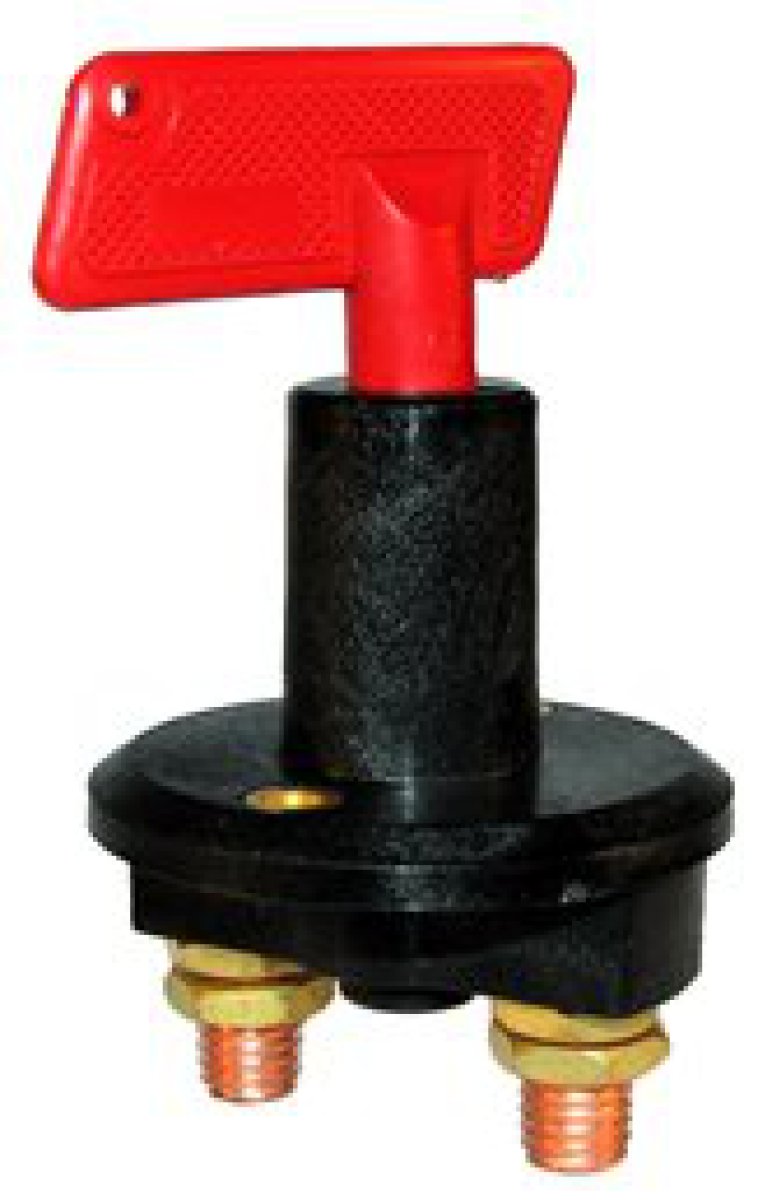

Reliable main power switch for various applications

This main power switch with removable key is designed to safely interrupt the power supply in electrical systems of vehicles and boats. With a continuous load capacity of 100 amps, it is suitable for both 12V and 24V systems.

Technical specifications

• Rated voltage: 12V up to a maximum of 24V DC
• Continuous current: 100A
• Maximum load: 500A for 5 seconds
• Connections: M8 bolts made of galvanized steel
• Protection rating: IP44
• Operating temperature: -40°C to +50°C
• Dimensions: Diameter 60 mm, height 110 mm
• Weight: 0.12 kg

Versatile in use

This switch is ideal for use in:

• Cars
• Motorhomes
• Caravans
• Boats
• Other vehicles with 12V or 24V electrical systems

Safety and ease of use

The removable key provides extra security against unauthorized use. When the key is removed, the circuit is interrupted, which helps prevent discharge and unwanted power consumption during downtime.

Durable and robust design

Made from high-quality materials, this main power switch offers a long service life and reliable performance under various conditions. The IP44 rating guarantees protection against splashing water and dust, making it suitable for both indoor and outdoor use.

Easy installation

Thanks to the M8 connection bolts, installation is quick and easy. The compact dimensions allow the switch to be mounted in various locations without taking up much space.

Application examples

• Vehicle security: Prevent theft by interrupting the power supply when the vehicle is not in use.
• Maintenance work: Easily switch off the power during maintenance to prevent short circuits or damage to electrical components.
• Energy management: Manage energy consumption by disconnecting specific circuits or devices when not needed.

With this main power switch, you ensure a safe and efficient way to manage the power supply in your vehicle or boat.
