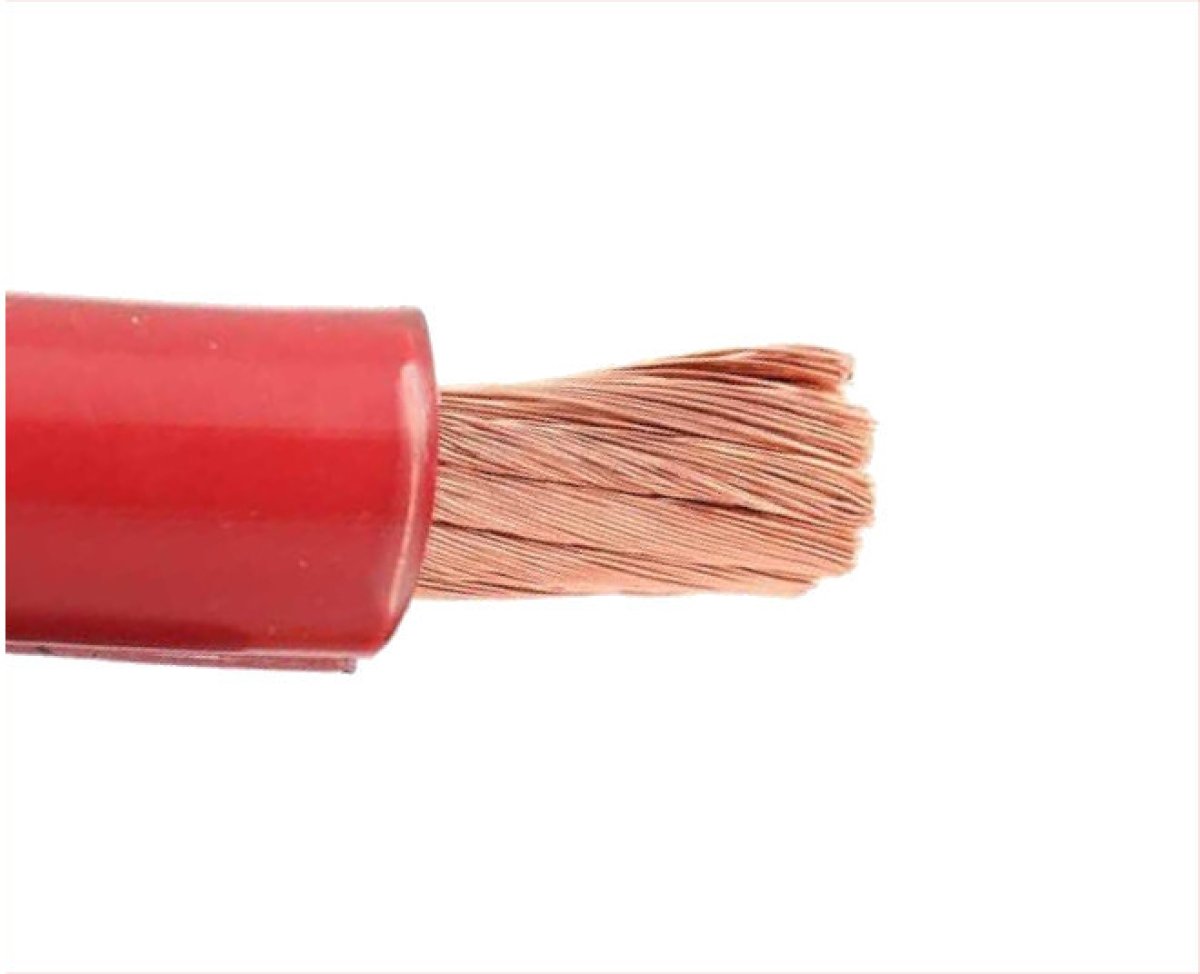

High-quality copper conductor

The core of this battery cable consists of electrolytically softened copper, known for its excellent electrical conductivity. This ensures minimal resistance and efficient power transfer, essential for the performance of your electrical systems.

Durable PVC insulation

The cable features high-quality PVC insulation that protects against mechanical damage and environmental influences. This insulation is resistant to oil and other chemicals, extending the cable's lifespan.

Flexibility and easy installation

Thanks to its flexible construction, this battery cable is easy to install, even in tight spaces. The suppleness of the cable allows you to bridge bends and corners without any problems, making installation easier.

Technical specifications

• Conductor area : 6mm²
• Outer diameter : Ø 4.8 mm
• Nominal voltage : 50V
• Test voltage : 2000V
• Maximum current : 36A at temperatures below 25°C

Application possibilities

This battery cable is ideal for various applications, including:

• Connecting batteries in cars and other vehicles
• Connecting inverters and battery chargers
• Use in dry, wet, and oily environments

Calculating the correct cable thickness

To determine the correct cable thickness, you can use the following formula:

Current (A) x distance (m) x 0.2 = required cable thickness in mm²

For example:

• A battery charger of 30A at a distance of 2.5 meters: 30 x 2.5 x 0.2 = 15 mm². In this case, choose the next standard thickness, namely 16 mm².

• An inverter of 450W on a 12V battery and 3 meters distance: 450W / 12V = 37.5A; 37.5 x 3 x 0.2 = 22.5 mm². Here, choose 25 mm².

Order information

The cable is sold per meter and delivered in one piece. For example, if you order 3 meters, you will receive a cable of 3 meters without interruptions.
