High-quality battery cable for reliable power supply

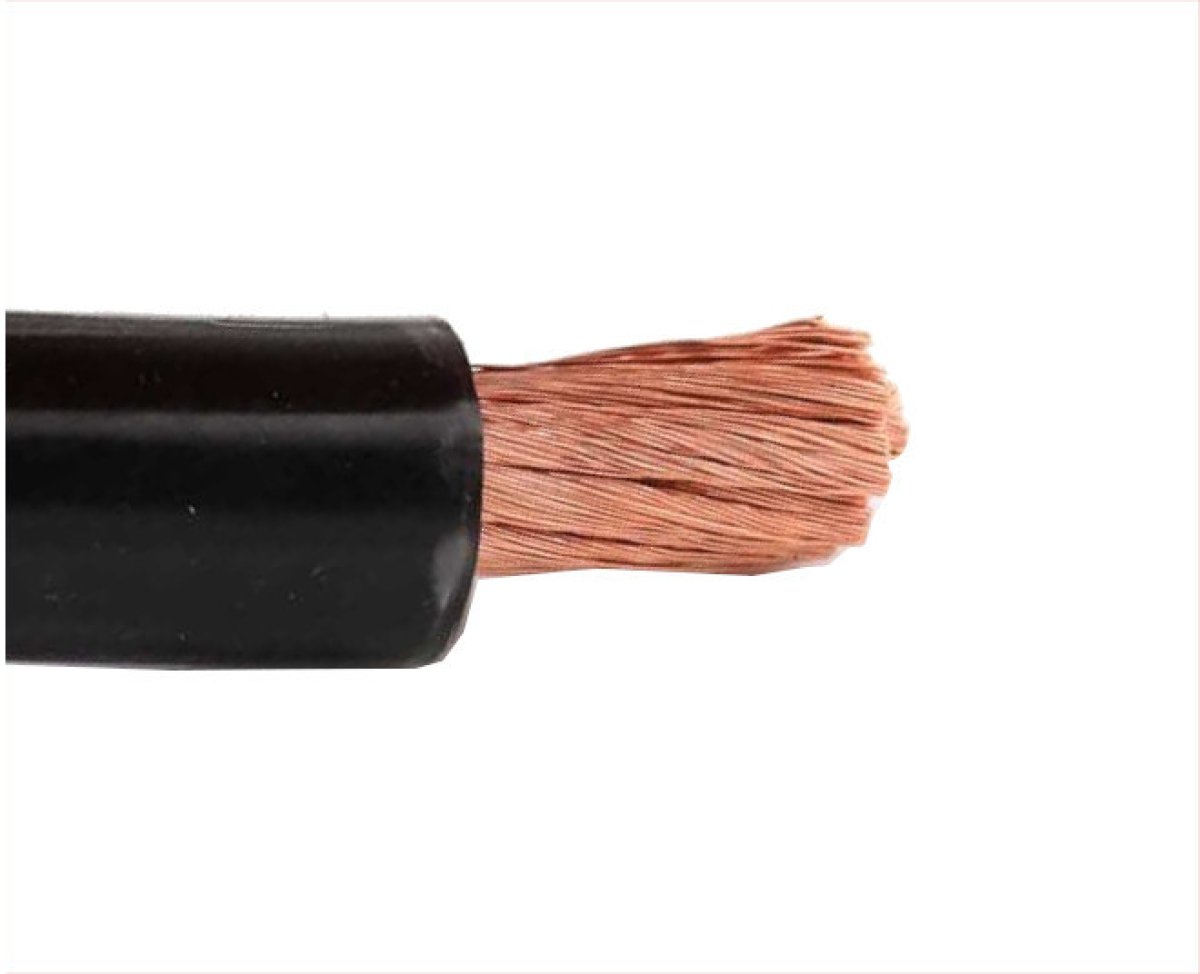

This 6mm² black battery cable is specially designed for efficient connection and linking of batteries in various vehicles. The core consists of electrolytic copper, ensuring excellent conductivity and minimal resistance.

Flexibility and durability

Thanks to its flexible construction, this cable is easy to install, even in tight spaces. The PVC insulation provides protection against mechanical damage and is resistant to oily environments, extending the cable's lifespan.

Technical specifications

• Conductor cross-section: 6mm²
• Outer diameter: Ø 4.8 mm
• Nominal voltage: 50V
• Test voltage: 2000V
• Maximum current: 36A at temperatures below 25°C

Versatile applications

This battery cable is suitable for:

• Connecting batteries in cars
• Connection cable between power sources
• Installations in dry, wet, and oily environments

Calculating the correct cable thickness

To determine the correct cable thickness, use the following formula:

Current (A) x distance (m) x 0.2 = required cable cross-section in mm²

Example 1: A battery charger of 30A at 2.5 meters from the battery:

30A x 2.5m x 0.2 = 15mm²

Since 15mm² is not a standard size, choose the next available thickness, in this case 16mm².

Example 2: An inverter of 450W at 12V, at 3 meters from the battery:

450W / 12V = 37.5A

37.5A x 3m x 0.2 = 22.5mm²

Rounding up to the next standard size results in 25mm².

Order by desired length

The battery cable is sold per meter, so you can order exactly the length you need for your specific application.

Quality guarantee

This cable complies with standards HD.22.6 and IEC 245-6, ensuring high quality and reliability in various applications.
