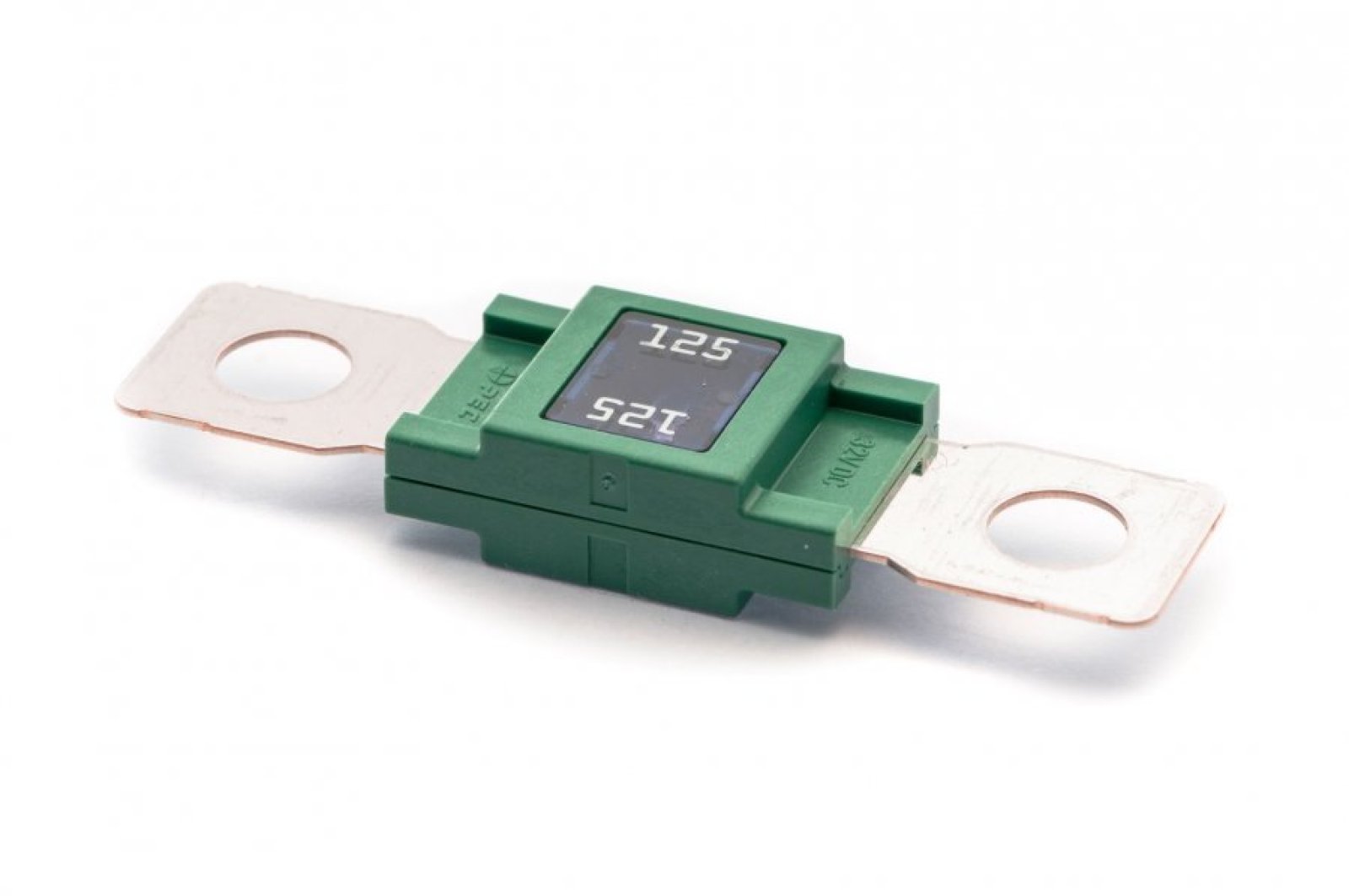

Reliable circuit protection with the MEGA fuse 125A

The 125A MEGA fuse is designed to effectively protect your electrical systems against overload and short circuit. With a rated current of 125 amperes, this fuse is ideal for use in 12V and 24V systems.

High-quality construction and design

This fuse features a robust thermoplastic housing that withstands high temperatures. The color-coded housing makes it easy to identify the correct fuse rating. The tinned copper terminals ensure optimal conductivity and corrosion resistance.

Easy installation with M8 terminals

Equipped with M8 mounting holes spaced 51 mm apart, installing this fuse is quick and easy. The compact dimensions of 68.6 mm in length and 19 mm in width allow the fuse to be integrated into various applications without taking up much space.

Suitable for various applications

This 125A MEGA fuse is suitable for:

• Protection of batteries and alternators
• Protection of heavy cables and electrical circuits
• Use in cars, motorhomes, and boats

Technical specifications

• Rated current: 125A
• Maximum voltage: 32V DC
• Maximum breaking capacity: 2000A at 32V DC
• Housing material: Thermoplastic, color-coded
• Terminals: Tinned copper with M8 mounting holes at 51 mm spacing
• Dimensions: 68.6 mm x 19 mm x 9 mm

Compatibility and standards

This MEGA fuse complies with international standards such as ISO 8820-5 and JASO D612, and is also REACH and RoHS certified. This guarantees a high level of reliability and safety in your electrical installations.

Importance of the correct fuse rating

It is essential to choose the correct fuse rating based on the peak current of your installation. Calculate the maximum current and then select the next higher available fuse rating to ensure optimal protection.

Maintenance and inspection

Regular inspection of the fuse is important to ensure the safety of your electrical system. If you are unsure about the status of the fuse, it is advisable to test it to determine if replacement is necessary.
