Overview of the vibration damper

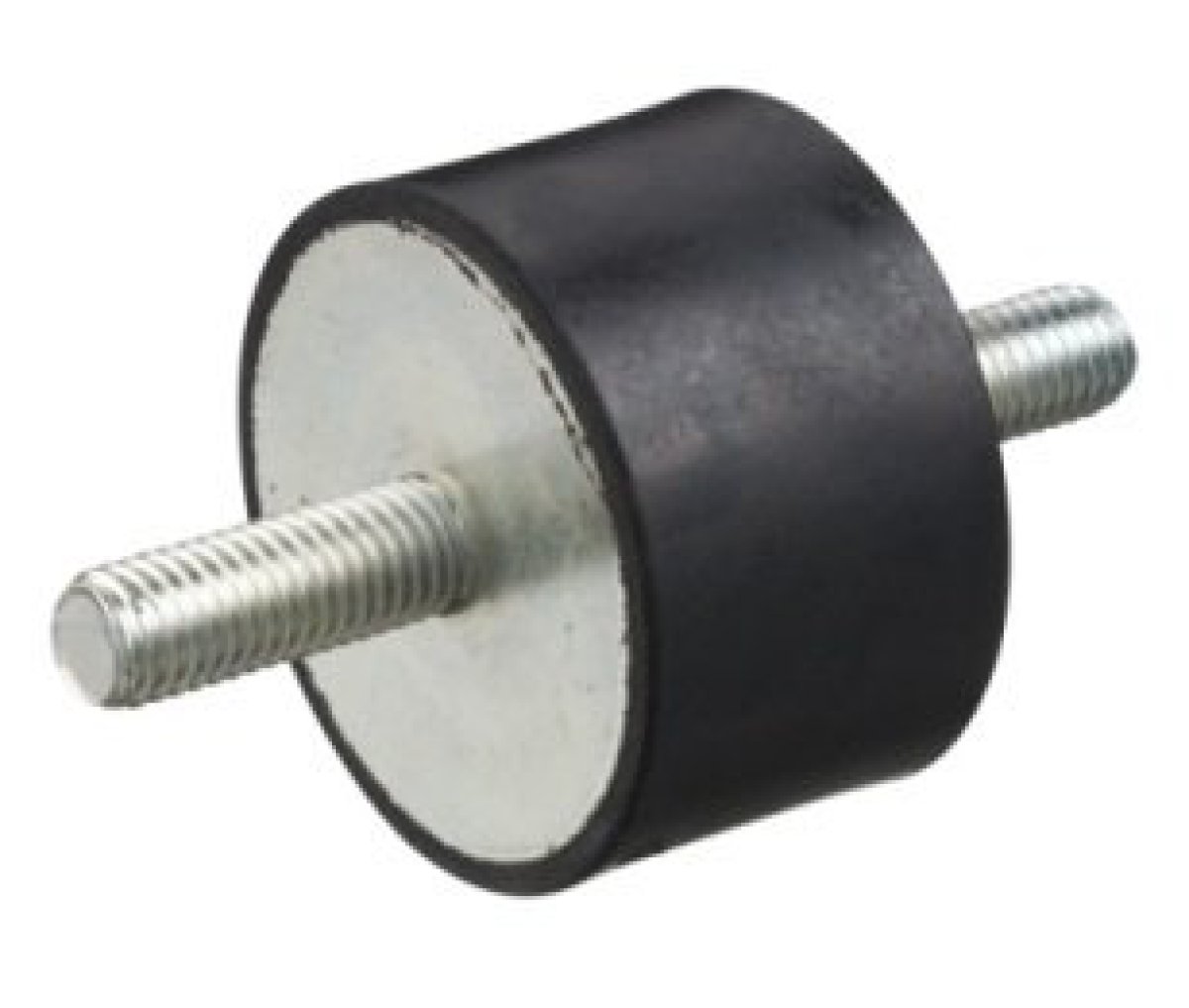

This cylindrical vibration damper type A has a diameter and height of 20 mm and is equipped on both sides with an external M6 thread of 18 mm length. The rubber part is made of natural rubber (NR) with a hardness of 55 Shore A, ensuring optimal vibration absorption.

Areas of application

This vibration damper is suitable for various sectors:

• Automotive : Reduces vibrations in vehicles, leading to a more comfortable driving experience.
• Equipment and machinery construction : Protects machines and equipment from harmful vibrations.
• Construction : Dampens vibrations in building structures, extending the lifespan of materials.
• Shipping : Minimizes vibrations on board, contributing to stability and safety.
• Industrial applications : Suitable for various industrial machines and installations.

Technical specifications

• Elastomer material : Natural rubber (NR) - black
• Hardness : 55 Shore A (+/-5)
• Diameter rubber part (D) : 20 mm
• Height rubber part (H) : 20 mm
• Material metal parts : Steel S235JR+AR - galvanized
• Thread (G) : M6
• Thread length (h) : 18 mm
• Temperature range : -30°C to +80°C

Advantages of this vibration damper

• Effective vibration reduction : Absorbs both compression and shear loads, effectively reducing vibrations.
• Durable material : The use of natural rubber and galvanized steel guarantees a long service life.
• Versatile : Suitable for various applications in different sectors.

Installation and use

The vibration damper is easy to install thanks to the double M6 thread. Make sure the damper is mounted correctly to ensure optimal performance. Take the temperature range into account and avoid exposure to oils, lubricants, and greases for a longer lifespan.

Important considerations

For high dynamic and alternating loads or high vibration frequencies, a reduction of the maximum values must be taken into account. It is advisable to evaluate the specific load requirements of your application to select the right vibration damper.
