Powerful protection for your electrical systems

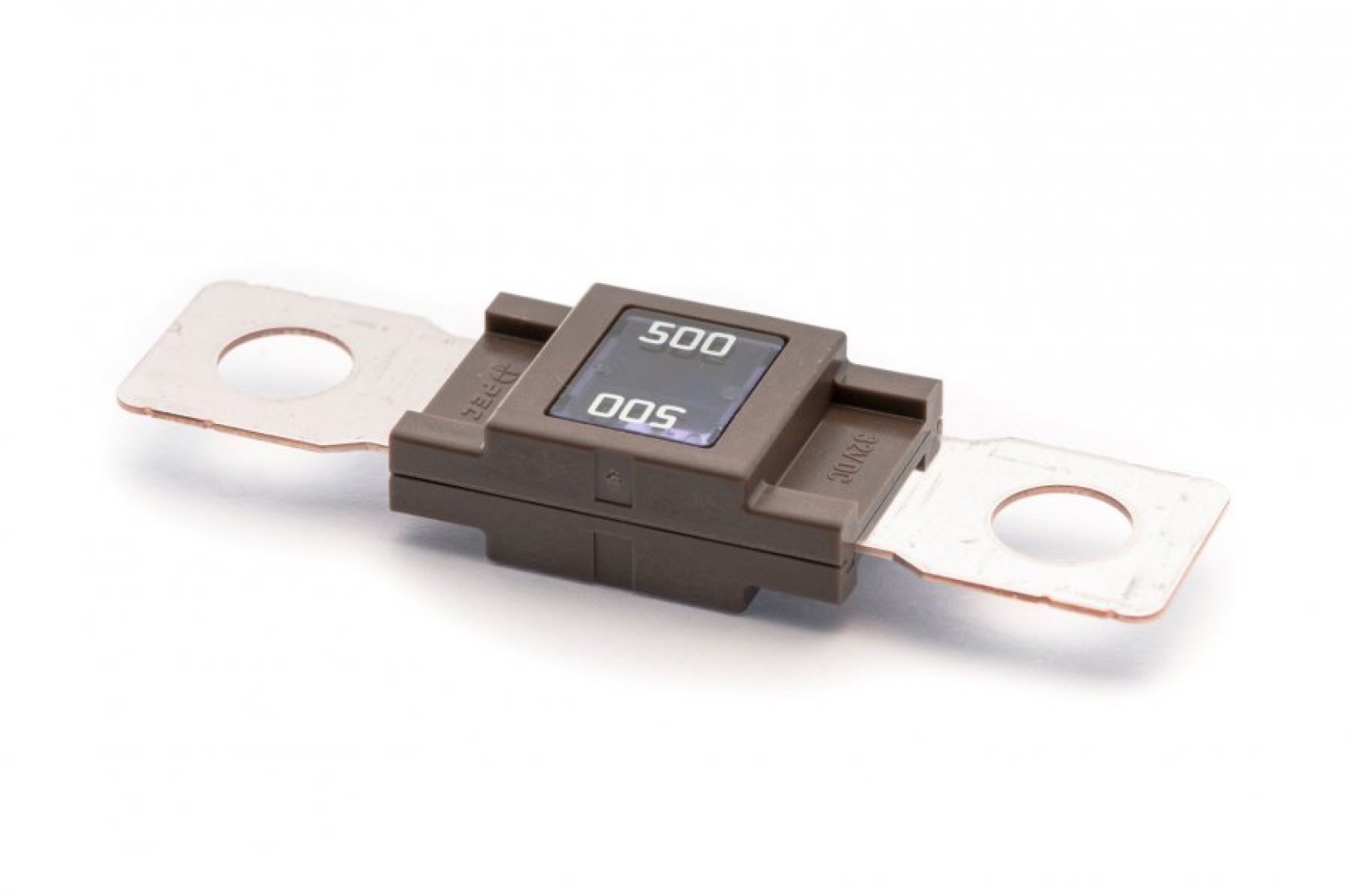

The MEGA fuse 500A is designed to protect your electrical installations against overload and short circuits. With a rated current of 500 amperes and a maximum voltage up to 32V, this fuse is ideal for heavy-duty applications in cars, campers, and boats.

High-quality construction and connections

This fuse features M8 connection holes, ensuring a solid and reliable connection. The distance between the connection holes is 51 mm, guaranteeing compatibility with various fuse holders. The housing is made of heat-resistant and chemically resistant material, enhancing durability and safety.

Applications and compatibility

The MEGA fuse 500A is suitable for:

• Protection of batteries and alternators
• Heavy cables and power circuits
• Electrical systems in vehicles and marine applications

Specifications

• Rated current: 500A
• Maximum voltage: 32V
• Connection holes: M8
• Distance between connection holes: 51 mm
• Housing: Heat- and chemical-resistant material

Installation and use

During installation, it is important to choose the correct fuse value based on your system's peak current. Calculate the maximum current and select the next higher fuse value to ensure optimal protection. Make sure the system voltage does not exceed the fuse's maximum voltage to guarantee safety.

Maintenance and inspection

Regularly check the status of the fuse. In case of overload or short circuit, the fuse wire melts, interrupting the circuit. This is not always visible, so it is recommended to measure the fuse to determine if it is still functional.
